StormDrain FSD-094-K 9-Inch Square Black Catch Basin Drain Box Kit with Grate and Debris Trap Filter

Special Price $59.95 Regular Price $81.99
In stock
FREE Shipping!


  • Quickly collects and removes unwanted storm water from lawns, patios and other areas around the house
  • Helps facilitate proper water drainage and avoid property damage.
  • Fits 3" or 4" sewer and drain pipe and fittings, corrugated pipe and Sch 40 PVC
  • Debris trap filter collects debris to help prevent clogged pipes
  • Capacity: 2.4 U.S. gallons
  • Commercial grade polypropylene - designed for maximum durability and drainage
  • Preferred by homeowners, landscape architects, designers and contractors
  • Size: 9.25" x 9.25" x 10"
  • Outlet: 2 outlets with 3 additional knockouts available
  • Made in the USA

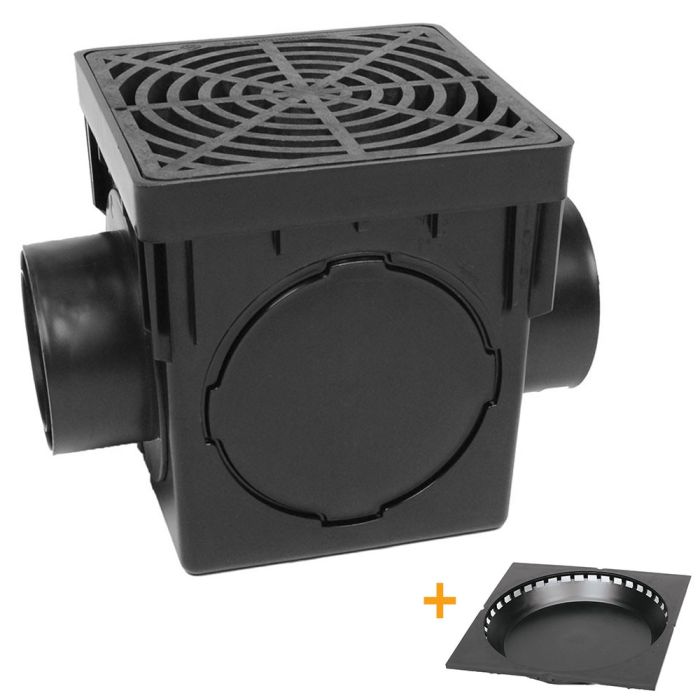

StormDrain FSD-094-K 9-Inch Square Black Catch Basin Kit with Black Grate
The StormDrain FSD-094-K 9-inch Square Catch Basin and Grate Kit is the perfect solution for collecting excess water from the lawn, landscape and driveway. The catch basin is designed to collect and divert water to safe areas protecting property against water damage caused by excess rainwater or irrigation. The basin accepts 3-inch and 4-inch S and D and corrugated piping along with Sch 40 PVC. Made of heavy duty polypropylene, this catch basin can handle medium-duty pneumatic tire traffic, autos and trucks. Made in the USA, this basin can hold up to 2.4 US gallons.

9-Inch Catch Basin Kit Includes:

  • 9-inch catch basin
  • Square grate
  • Debris trap
  • 2 Universal outles
  • 1 Plug

Installing StormDrain Square Catch Basins

  1. Excavate a hole large enough so the top of the drain box will be at the desired height and there is sufficient room on all sides of the box for 4”-6” of sand backfill.
  2. Make sure the bottom of the hole is flat, and well compacted, situate the box with the outlet connections oriented in the proper direction.
  3. Connect the drain lines. Compact sand evenly around the box leaving room for 4”-6” of topsoil or appropriate grade material.
More Information
Manufacturer Source One Environmental
Model FSD-094-K
Availability In Stock
Shape Square
Basin Size 9"
Product Dimensions 9.25" x 9.25" x 10"
Finish / Color Black
