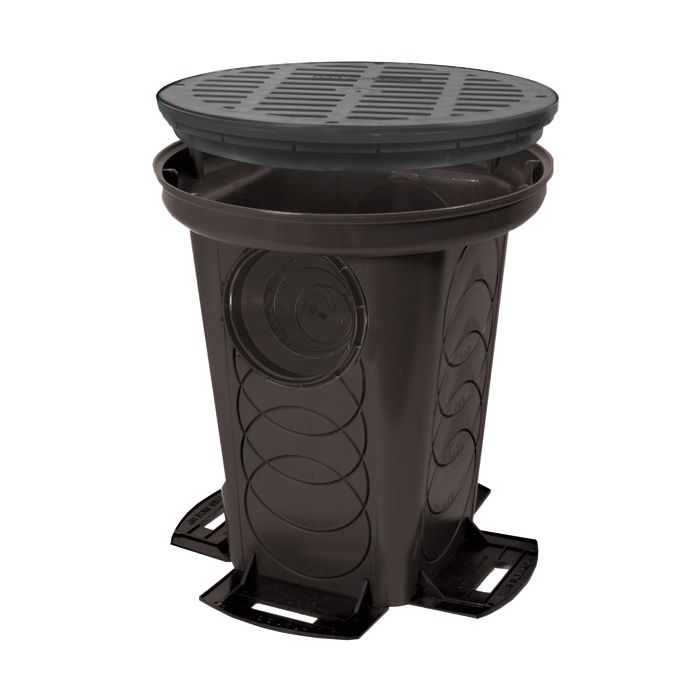

StormDrain FSD-3017-12BKIT Round Black Catch Basin Drain Box Combo Kit

Save $6.64
Special Price $74.95 Regular Price $81.59
In stock
SKU
FSD-3017-12BKIT
FREE Shipping!

Features

  • Use as Rain Drain, D-Box, or Drop Box; allows for all configurations
  • Holds up to 4 U.S. gallons
  • Made from heavy duty polyethylene - weighs 5.03 lbs
  • Use as a rain drain for gutters, driveways and sub surface drainage
  • Use as a distribution box or drop box for onsite septic systems
  • 2 adapters allow for 20 possible outlet positions
  • Connect 2", 3", and 4", plastic or corrugated pipe
  • Dimensions: 14.2" L x 14.2" W x 15.5" H
  • Recommended for pedestrian, bicycles and wheel chair traffic, loads of 1-60 psi.
  • Catch basin kit includes catch basin, grate, and 2 adapters

StormDrain Catch Basin Round 12" Kit
The StormDrain FSD-3017-12BKIT 12-inch catch basin kit is the most versatile box on the market today. The kit comes complete with the only seal on the market that accepts 2-inch, 3-inch, and 4-inch, smooth wall and corrugated pipe. The basin holds 4 U.S. gallons of water and weighs 5.03 lbs. Made of polyethylene this box includes grate, feet and 2 adapters. This valve box is perfect for areas with light weight traffic including bicycles and wheel chairs.

Installation Instructions:

  1. Carefully cut out required opening in the box with a knife.
  2. Install seal from inside the box.
  3. Screw on the nut from outside the box.
  4. Tighten to provide a watertight seal.
  5. Remove the correct size tear out on the seal. Tear out, do not cut out.
  6. Slide the pipe into the seal.
  7. Snap the stabilizing feet into the sockets at the base of the box.

Special Instructions for Installing 4" Corrugated Pipe Only:

  1. Remove the 4" tear out on the seal.
  2. Carefully cut between raised ribs on back of seal in all 4 places.
  3. Push corrugated pipe into seal.
More Information
Manufacturer Source One Environmental
Model FSD-3017-12BKIT
Availability In Stock
Shape Round
Basin Size 12"
Product Dimensions 14.2" x 14.2" x 15.5"
Finish / Color Black
